Are you ready for the revolution in channel baler construction? The innovative and patented “OptiCut” cutting system marks the beginning of a new era. It not only eliminates the need for a cutting edge free rammer, but also increases throughput by an incredible 50 to 100 percent! A quantum leap in environmental technology that particularly benefits users who require extreme throughput rates with maximum stability. But that’s not all – a homogeneous cutting pressure curve significantly reduces hydraulic and mechanical stress. This is made possible by an optimally dimensioned clearance for the material in the cutting process. The OptiCut system is available for Avermann channel balers as well as for retrofitting to other makes. Let the experts from EcoTech Solutions advise you and experience the future of channel baling presses!
|
Mixed waste paper 1.02 (B12) |
Without OptiCut |
With OptiCut |
|
Cutting pressure |
approx. 200 bar |
approx. 80 bar |
|
Time per bale |
1 min. 55 s |
1 min. 20 s |
|
Bale weight (L = 1.45 m) |
640 kg |
695 kg |
|
Throughput |
20.2 t/h |
31.6 t/h |
Example: AVOS 1810 B5-90/100 with two axial piston pumps, 250 cm3 each
|
Department store waste paper 1.04 (B19) |
Without OptiCut |
With OptiCut |
|
Cutting pressure |
approx. 150 bar |
approx. 70 bar |
|
Time per bale |
3 min. 40 s |
2 min. 43 s |
|
Bale weight (L = 1.40 m) |
520 kg |
607 kg |
|
Throughput |
8.6 t/h |
13.2 t/h |
Example: AVOS 1810 B5-90/100 with two axial piston pumps, 250 cm3 each

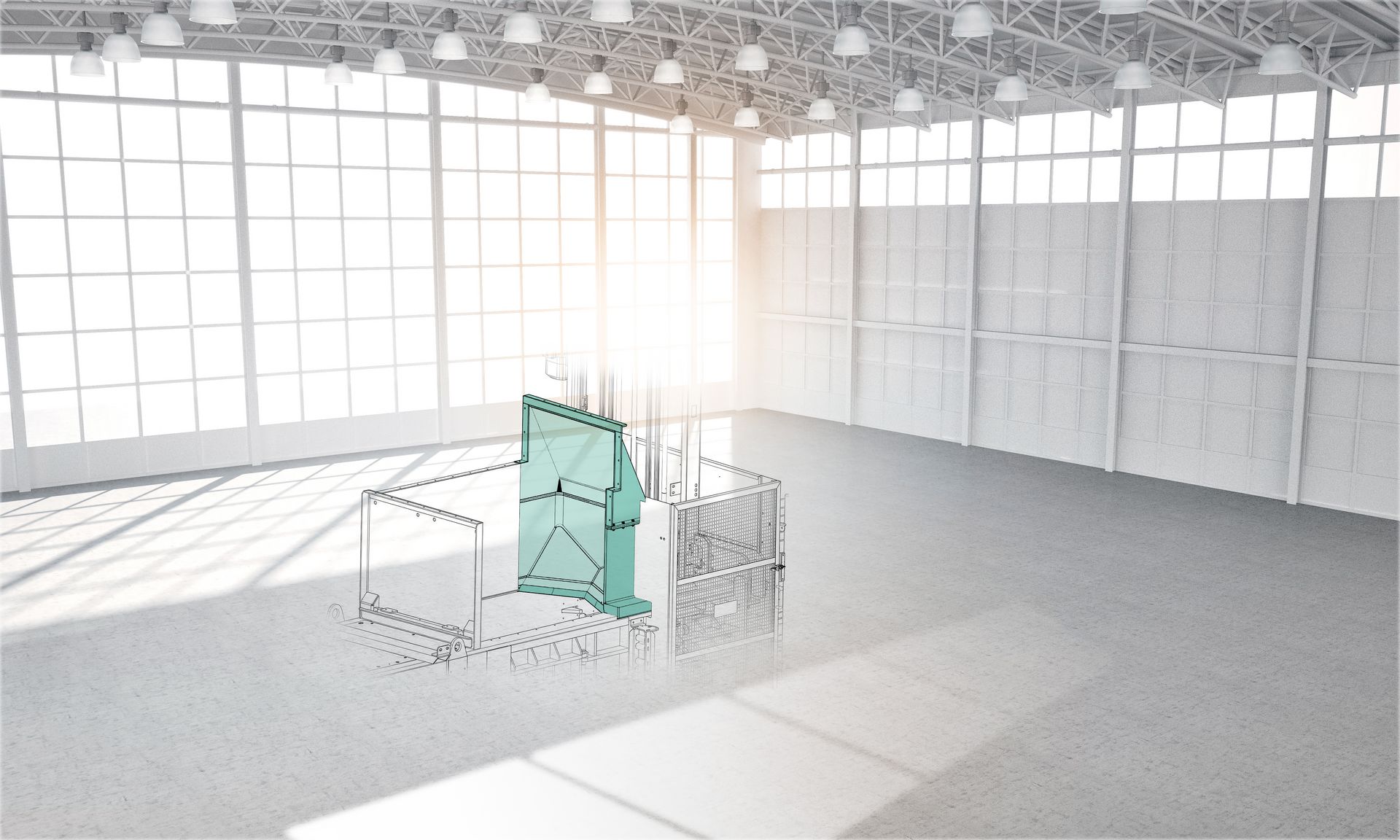

Until now it has not been possible to show you the exact baling process of our channel balers because the baler body is made of thick and solid steel and you cannot see through these walls. Fortunately, we found the perfect solution to this problem: in cooperation with Drehteam in Osnabrück, we produced an animated film about our high-performance AVOS 1810 channel baling press with OptiCut cutting system and special press plunger.
The newly developed, patented “OptiCut” cutting system is the start of a new era in the construction of channel balers. It eliminates the need for a cutting edge free rammer and also increases throughput by an unprecedented 50 to 100 percent.
At EcoTech Solutions Umwelttechnik, the standard is already outstanding.
For precise customization, we offer comprehensive services that go one step further in every respect.
Whether before, during or after the purchase of EcoTech Solutions environmental technology products – we support you not only in Germany, but also internationally in all areas.
Our trained technicians will solve your problems quickly and efficiently.
Our customer service technicians are available by phone to answer your questions quickly and competently. For more complex issues, we will put you in touch with the right contact person. On request, EcoTech Solutions Umwelttechnik also offers a professional on-site service to provide optimum support for your systems.
From planning and optimization to modernization: EcoTech Solutions Umwelttechnik offers you comprehensive solutions from a single source. Rely on our holistic expertise to make your recycling and waste systems more efficient and future-proof. Contact us for tailor-made concepts and professional implementation of your projects.
The regular inspection of work equipment is required by law. EcoTech Solutions Umwelttechnik carries out UVV inspections for you - reliably, thoroughly and professionally. Rely on our expertise to ensure the safety of your systems.
We are at your disposal with our service and expertise at all times. Contact us and get a non-binding consultation appointment.
